WARNING: attaching a JTAG port will certainly void your warranty and could destroy your unit.
Please feel free to update, cleanup or correct this page.
What is this?
This document shows how to use the JTAG port on the DNS-323.
- You need openocd OpenOCDinstalled on a linux box
- You can get the sources svn checkout svn://svn.berlios.de/openocd/trunk
- You need a JTAG cable
Two types of jtag cables are discussed here: 1: The “Wiggler” style, which is basically a conversion between the jtag interface on the embedded system and the parralel (printer) port on your PC. 2: The “Amontec JTAGKey Tiny” (other commercially models may or may not work), which provides a USB connection at the PC side. Comparison: pro method 1: cheaper, Pro method 2: less soldering (faster?)

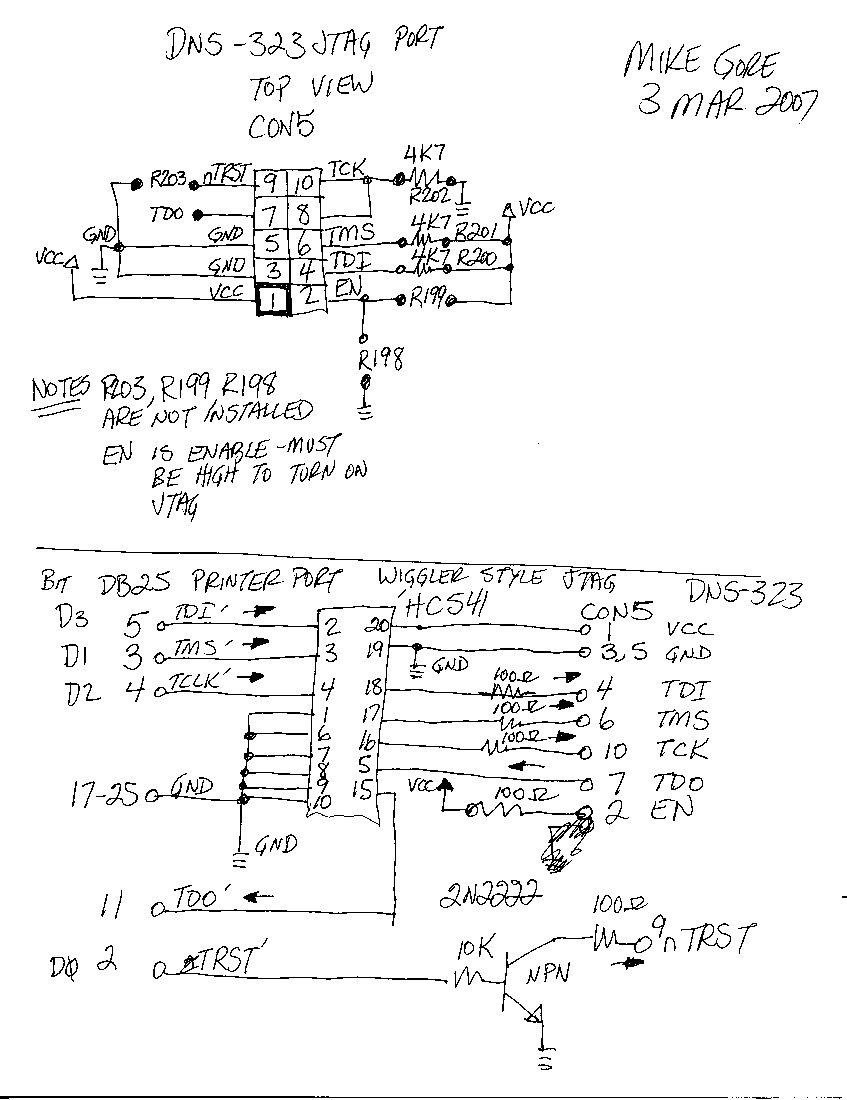

TOP VIEW Note Pin 1 is square pin
Note nTRST must be sent a buffered high signal to use JTAG
Be aware that this pinout seems to be based on the DNS 323 version B2 and the CH3SNAS. The DNS-323 version A1 has the same space for a header, but the location of the surrounding resistors is different. This might or might not have consequences for the validity of the pinout as above. (Anyone: more information on the A1 rev.?) Rev A1 is the same pinout, smd resistors are already attached, just add header.
cat openocd.cfg #daemon configuration telnet_port 4444 gdb_port 3333 #interface interface parport parport_port 0x378 parport_cable wiggler #parport_cable old_amt_wiggler jtag_speed 1 #use combined on interfaces or targets that can't set TRST/SRST separately #reset_config trst_and_srst srst_pulls_trst #reset_config trst_only #reset_config trst_and_srst combined reset_config srst_only #jtag scan chain #format L IRC IRCM IDCODE (Length, IR Capture, IR Capture Mask, IDCODE) jtag_device 4 0x1 0xf 0xe jtag_nsrst_delay 1200 jtag_ntrst_delay 1200 #target <type> <endianness> <chainpos> <variant> target feroceon little 0 # planing with flash code - work in progress working_area 0 0x00400000 0x40000 nobackup # driver addr size chip_width bus_width options flash bank cfi 0xff800000 0x400000 1 2 0 #target configuration init reset run sleep 500 halt
Solder 47 KOhm resistors @ R202 R201 R200 Connect JTAG pins just like the Wiggler port, and also bridge R199 (EN pin to VCC) to enable JTAG. Refer to the top half of the pdf as attached in the previous section. Pinout of the jtagkey tiny is available here
telnet_port 4444 gdb_port 3333 interface ft2232 ft2232_device_desc "Amontec JTAGkey" ft2232_layout jtagkey ft2232_vid_pid 0x0403 0xcff8 jtag_speed 3 reset_config srst_only jtag_device 4 0x1 0xf 0xe jtag_nsrst_delay 1200 jtag_ntrst_delay 1200 #target <type> <endianness> <chainpos> <variant> target feroceon little 0 # planing with flash code - work in progress #working_area 0 0x00400000 0x40000 nobackup # driver addr size chip_width bus_width options flash bank cfi 0xff800000 0x800000 1 2 0 #target configuration init reset run sleep 500 halt
- Start the program
openocd -d3 --log_output log.txt
- Telnet to the debug interface
telnet localhost 4444 Trying 127.0.0.1... Connected to localhost. Escape character is '^]'. Open On-Chip Debugger
- Memory dump of the U-Boot flash
> mdb 0xfffd0000 0x10 0xfffd0000: 12 00 00 ea 14 f0 9f e5 0xfffd0008: 14 f0 9f e5 14 f0 9f e5
- Dump Marvell» U-BOOT prompt in firmware example
> mdb 0xfffea826 0x8 0xfffea826: 72 76 65 6c 6c 3e 3e 20
- Reset CPU
Target 0 halted target halted in ARM state due to debug request, current mode: Supervisor cpsr: 0x200000d3 pc: 0x00f12a2c MMU: disabled, D-Cache: disabled, I-Cache: enabled
- The flash code in OPENOCD does not understand CFI mode 2 access. However this looks to be easy to fix. There is an early patch that attempted to address this but was never added into the project release. This code provides a good starting point.
